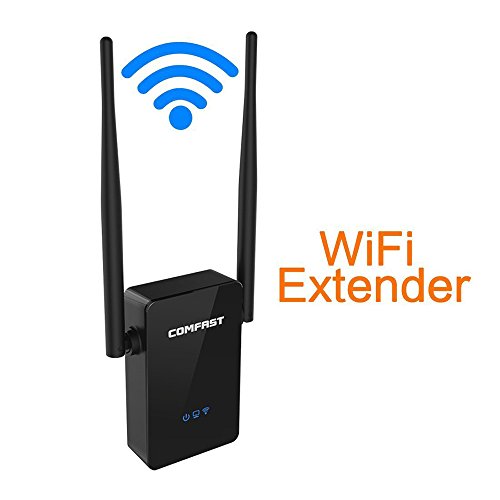

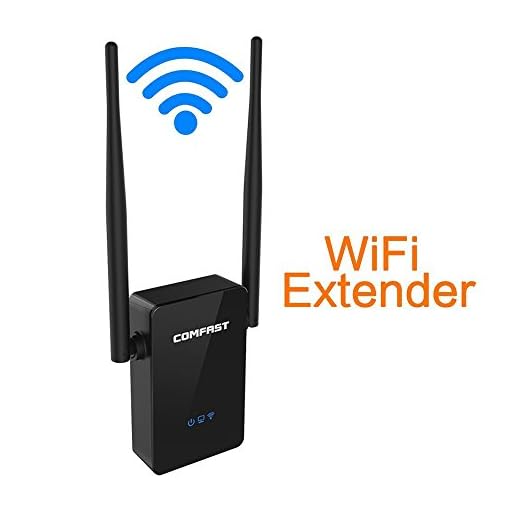

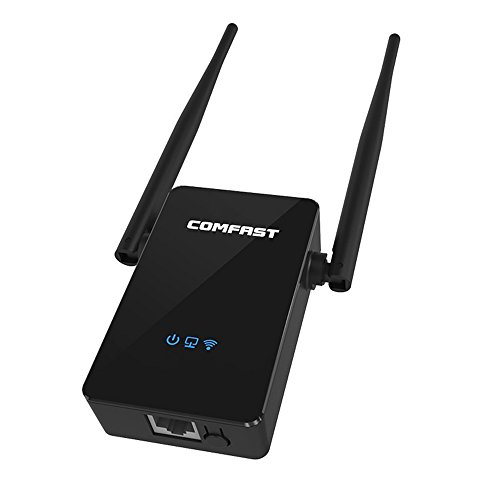

Wifi Extender CF-WR302S
Share the wifi throughout your home, eliminate dead zones with this WiFi Repeater!
Do you have a big house but want to cover signal to your upstairs room or to the far end of your basement where there is only weak signal? This Wifi extender is exactly what you need.
What is it for?
This Wifi extender can extend your existing Wifi and creates a stronger signal in hard-to-reach areas.
How to use it?
Note: the QR code on the item is not working, please follow the following steps to set it up.
1. Plug this in wall socket
2. search for the “COMFAST_***” wifi network, click on ‘Connect’
3. Type ip address 192.168.10.1 in the browser bar which will automatically direct to a set up page
4. Enter password”admin” by default
5. Click the one that you want to extend and input the password of the wireless network
6. Wait for the Comfast device to reboot and reconnect to wifi using the new SSID
7. Then you are ready to use the wifi extender
Wifi extender—Strong and stable signals

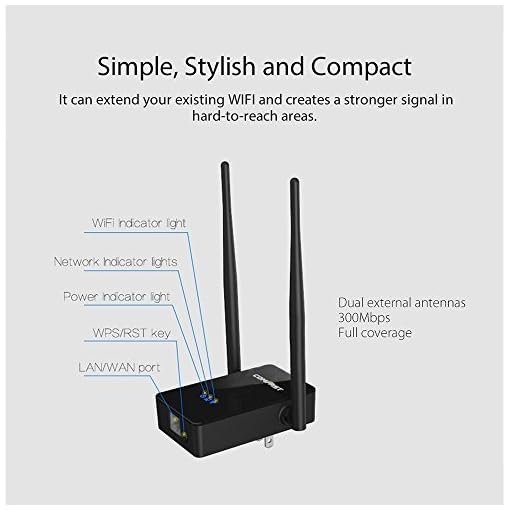

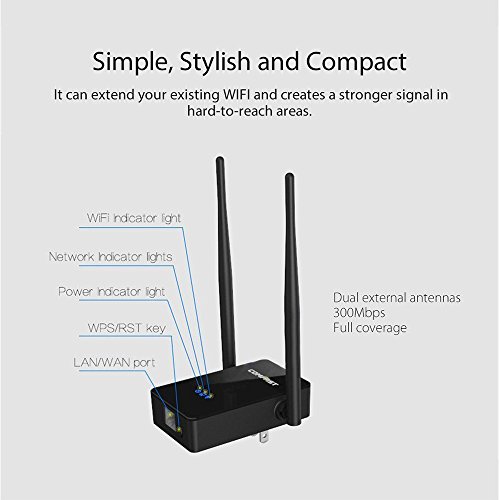

1.Double Spiral Antennas
The specially snail tentacle antennas have annual built-in copper antennas, so that zero loss is guaranteed in signal receiving and transmitting. 360-degree wifi coverage is achieved.
2.Realtek Chipset
Dual CPU: RTL8192E+RTK8192ER, provides you with the most stable WiFi signal and the fastest speed. Max speed: 300 M/S.

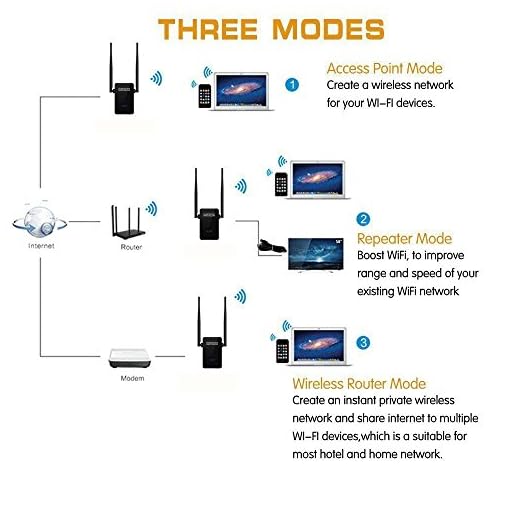

3 in 1 Function
Repeater Mode: Extend your exsiting wifi signals in coverage
AP mode: Create a wireless network for your laptops and mobile phones
Router Mode: Creates a private wifi network and enable mutiple devices to share it
Chipset: RTL8196EU&8192ER
Standard: IEEE802.11N(Draft2.0),IEEE802.11g,IEEE802.11b
Antenna Gain: Dual 5dBi
Frequency: 2.4-2.4835GHz
RF power: 17-20dBm(typical)
Data Modulation: DBPSK,DQPSK,CCK,OFDM,16-QAM,64QAM
Input power: 100V-240V AC
Boost WiFi Coverage: This WiFi extender can extend your existing WiFi and creates a stronger signal in hard-to-reach areas.
High Performance: Double lengthened antennas (140mm) can achieve the signal coverage of 140㎡, reliable wireless N network speed up to 300Mbps covering your bedroom, floors, restroom, garage and garden.
Universal Compatibility: This WiFi extender is compatible with nearly all routers and all WiFi enabled devices including IOS and Android smartphone, iPhone, iPad, Tablet, Laptop, Desktop, ect.
Easy to Set-up: Small size and wall-mounted design make it easy to deploy and move with flexibility. Most customers can easily finish the setting in 5 minutes.
Service: If you have any problem with this item, please feel free to contact our customer support to resolve it, we will always be here to help you, thanks.
